Clear Night Vision 5MP HD TVI/AHD, 4MP CVI Wide Angle Dome CCTV Security

Clear Night Vision 5MP HD TVI/AHD, 4MP CVI Wide Angle Dome CCTV Security Camera, 2.8Mm Lens Indoor Outdoor IR Waterproof Analog Surveillance Camera (Metal, Grey)
Description Item model number HN-SD500 Indoor/Outdoor Usage Indoor Is Discontinued By Manufacturer No Product Dimensions 3.72 x 3.72 x 2.99 inches Country of Origin China Item Weight 11.2 ounces Connectivity Technology Coaxial Recommended Uses For Product Indoor, Outdoor Special Feature day-and-night-camera

ENHANCED NIGHT VISION: Latest tech anti-reflection black film panel, IR filter and upgraded Led for brighter clearer and cleaner night vision.

WIDE ANGLE CRISP IMAGE: 1/2.5-inch CMOS sensor for crystal clear day and night image with 100° wide view.

MULTIPLE MODES OUTPUT: HDTVI/AHD support 8MP (4K) 15fps/12.5fps; 5MP 20fps/12.5fps; 4MP 30fps/25fps; 1080P 30fps/25fps; HDCVI supports 8MP (4K) 15fps/12.5fps; 4MP 30fps/25fps; 1080P 30fps/25fps and 960H wired BNC output.

IP66 COMPACT DESIGN: Compact size for easy installation; Recommend installing it indoor or on porch.

Friendly, easy-to-reach support; Power supply, coaxial video cable and DVR are NOT INCLUDED but required.

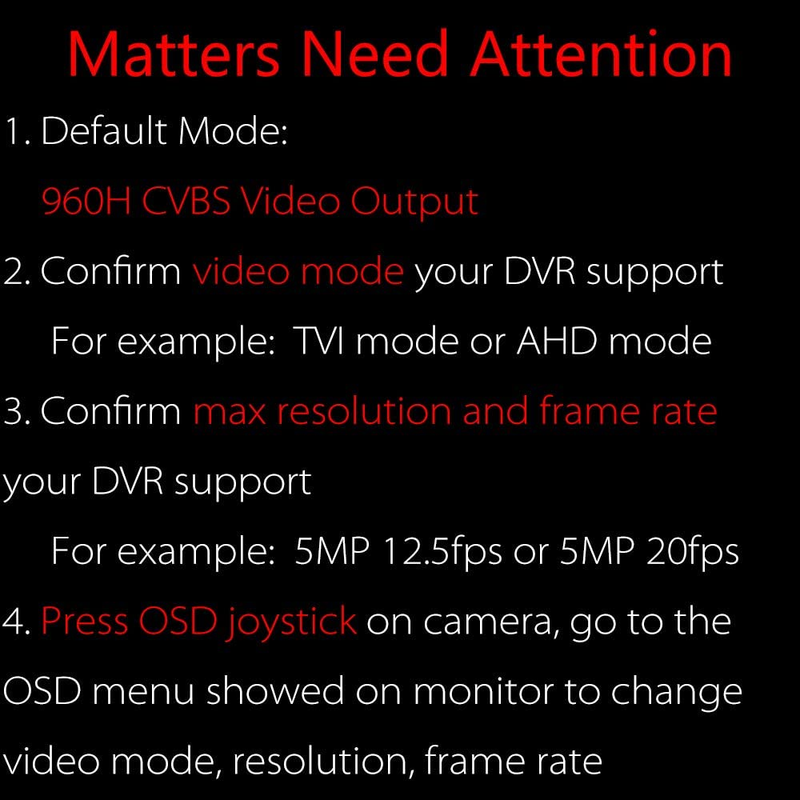

Product Description Checklist before purchasing:
1. Power supply, coaxial video cable and DVR are NOT INCLUDED
but REQUIRED
.
2. Default mode: 960H (CVBS) video format.
3. Firstly confirm what video mode, resolution and frame rate
your DVR support, for example, if your DVR support max 5MP TVI 12.5fps, then press OSD joystick, the monitor will show On Screen Menu, then choose the video format, resolution, and frame rate
by joystick on the camera cable.
4. If you choose the wrong video mode or frame rates accidentally, there may be no signal shows on monitor, please power off and power on
the camera again, hold OSD joystick left for 5 seconds
, then the camera will be switched to default 960H
video mode.
5. At least DC 12V 1A
power adapter is required. If there is no video or IR Led is not working properly at night, please use DC 12V 2A (or 3A) power adapter. It depends on the power cable length and quality.
6. Peel off the protective films
on the glass panel before installation, or else the night vision will be foggy.
Specifications
Image sensor: 1/2.5” CMOS image sensor
Image Resolution: 8MP (4K)/5MP/4MP/1080P/960H
Lens: 2.8mm fixed megapixel lens for 100° wide angle of view
Infrared LED: 14µ x 18PCS with 30-60 feet infrared distance based on environment.
Camera feature: Day/Night; Auto/Manual White Balance; Gain control; Noise Reduction; Picture adjustment; OSD support; UTC support (HD mode)
Housing: Metal, IP66
IR-cut filter: Yes
Power Source: DC12V±10%; 550mA
Operation Temperature: 14F-122F, RH95% Max
1/2.5" CMOS for Wide Angle Clear Image
1/2.7-inch CMOS sensor and 2.8mm Lens for crystal clear image both day and night with 100 degree wide angle of view.
Enhanced Night Vision up to 60ft IR Distance
With 18pcs STM leds and black film technology, you could get brighter cleaner clearer image at night.
Multiple Video Modes Supported
With OSD joystick and On Screen Menu to get the video mode, resolution and frame rate your DVR support. 8MP (4k), 5MP, 4MP, 1080P optional.
IP66 Weatherproof Compact Design
Compact design make it suitable to install on any place, IP66 weatherproof make it possible for outdoor use. User Level Consumer / Business Consumer / Business Consumer / Business Image Sensor 1/2.5" CMOS 1/2.5" CMOS 1/2.5" CMOS Video Format AHD/TVI: 8MP 15fps/12.5fps; 5MP 20fps/12.5fps; 4MP 30fps/25fps; 1080P 30fps/25fps. CVI: 8MP 15fps/12.5fps; 4MP 30fps/25fps; 1080P 30fps/25fps. AHD/TVI: 8MP 15fps; 5MP 20fps/12.5fps; 4MP 30fps/25fps; 1080P 30fps/25fps. CVI: 8MP 15fps/12.5fps; 4MP 30fps/25fps; 1080P 30fps/25fps. AHD/TVI: 8MP 15fps; 5MP 20fps/12.5fps; 4MP 30fps/25fps; 1080P 30fps/25fps. CVI: 8MP 15fps/12.5fps; 4MP 30fps/25fps; 1080P 30fps/25fps. Lens 2.8mm 3.6mm 3.6mm IR Distance 60ft Visible Warm Light 30ft Visible Warm Light 30ft Weatherproof IP66 IP67 IP67 Video Connector BNC BNC BNC Power Supply Needed DC12V 1A-5A DC12V 0.5A-5A DC12V 0.5A-5A
